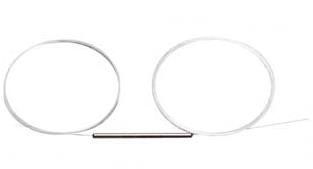

Bare Fiber PLC Splitter features low insertion loss and polarization dependent loss, excellent stability, and environmental and mechanical robustness. Telecordia GR-1221 and GR-1209 components comply with TLC standard and YD1117-2001 standard. In addition, the bare fiber PLC splitter can be used in FTTX, FTTH, PON, GEPON, LAN, CATV equipment. Two types of bare fiber PLC splitters are available: 1*N and 2*N modules. Common configurations are 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 and 2x2, 1x4, 2x8, 2x16, 2x16. We can also meet other configurations and special requests.

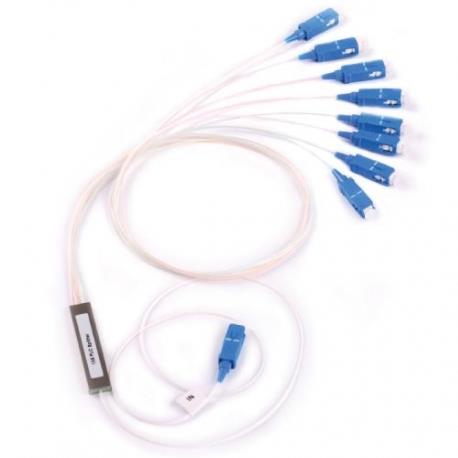

Blockless PLC splitters are available in different types: 1x4, 1x8, 1x16, 1x32, 1x64, 2x4, 2x8, 2x16, 2x32 and 2x32. Splitter connectors can be FC, SC, LC, etc. Blockless splitters are supplied with a set of compact stainless steel tubes. These are important products used in FTTx projects. Blockless PLC Splitter works with single-mode fiber in the wavelength range of 1260-1650 nm. Blockless splitters have low insertion loss and good stability. They are equipped with Telecordia GR-1221 and GR-1209 components that comply with the TLC standard and YD1117-2001 standard. The operating temperature of these splitters is -40 to 85°C. Other PLC splitters, such as bare fiber PLC splitters and pigtail PLC splitters, are also available.

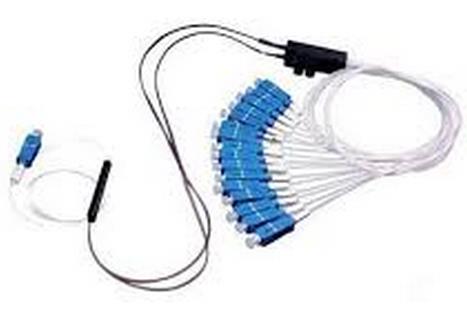

PLC splitter with pigtail is mainly used for 0.9mm optical fiber, ribbon fiber can be converted into 0.9mm optical fiber pigtail. Fiber adapters can be provided for both input and output ends for this type of splitter, so that they can be used directly to meet the small splitter size demand. We provide PLC splitters with low PDL, excess and insertion losses and high reliability that meet the requirements of GR-1209-CORE and GR-1221-CORE. This type of splitter is used for fiber optic distribution cable, or sometimes with flexible or flat cable. Provision Optical Systems provides a complete series of 1xN and 2xN PLC splitter kits with pigtail.

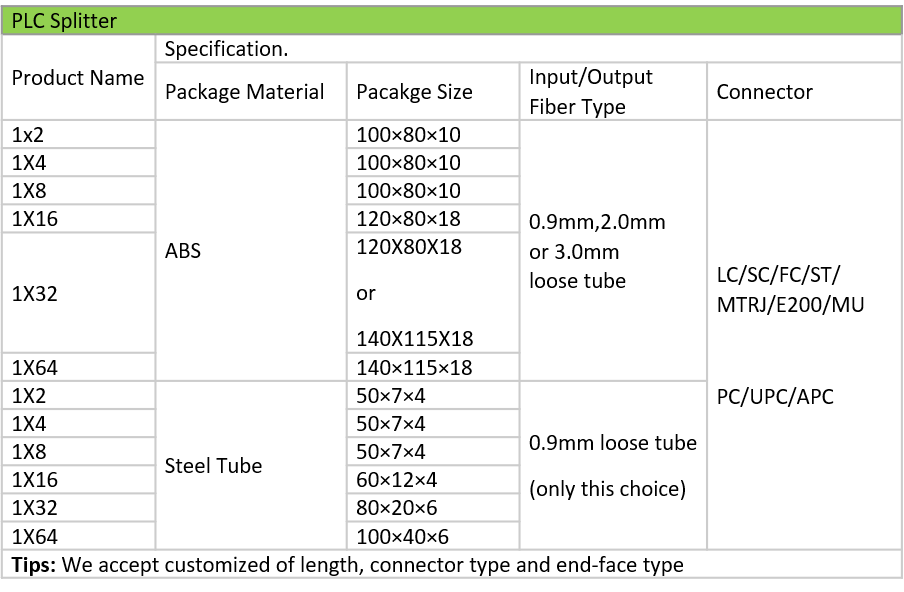

ABS plastic case type PLC splitter (1*N and 2*N) is made of ABS plastic material, which is strong, compact, corrosion-resistant, high-temperature resistant. It is widely used in FTTX PVC boxes. The role of the ABS case is to protect the wavelength splitter from different environments and installation requirements.

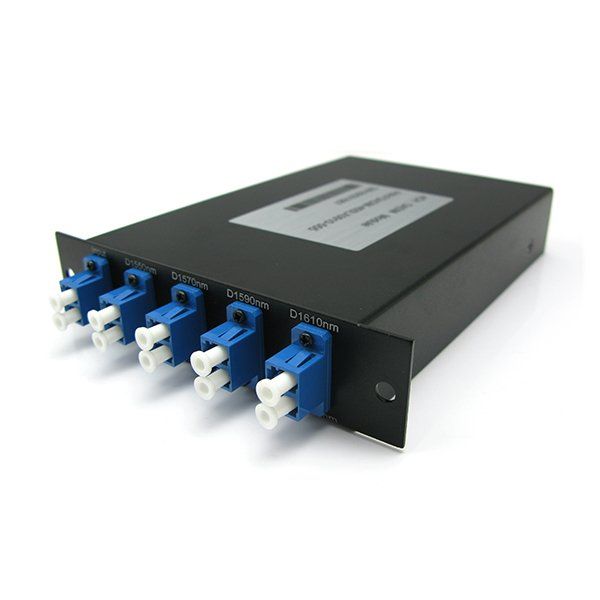

We supply a wide variety of PLC splitters in the form of a small standard LGX metal enclosure. PLC splitters are connectorized and/or pluggable. The LGX metal enclosure is compact and adaptable to different needs. LGX PLC splitter enclosures are key components in FTTX networks and are at the center of signal distribution from the central office to multiple premises. With an operating wavelength of 1260 nm to 1650 nm, LGX PLC splitters can be used in underground and aerial enclosures as well as in rack-mount systems. Provision supplies LGX PLC splitters to meet your specific needs.

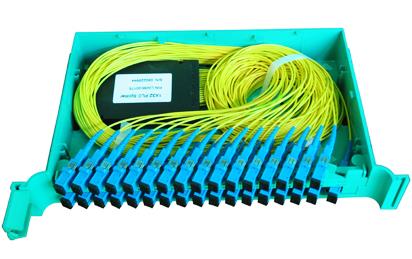

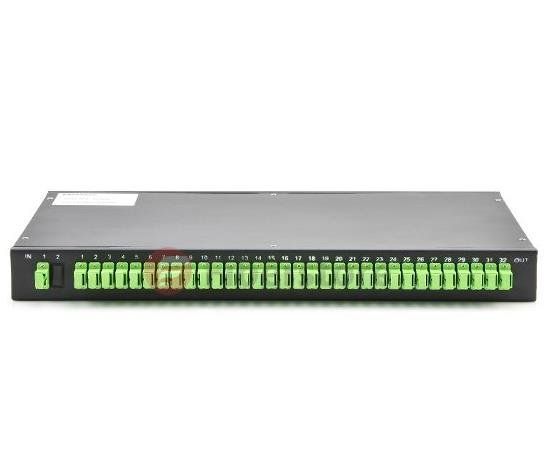

In the form of boxes to be mounted in a 19" rack. They are also available as a box for wall mounting with a fiber diameter up to 3 mm. The rack-mount PLC splitter is suitable for FTTx, CATV or data communication center projects. ProVision Optical Systems provides splitters for rack installation, offering low insertion loss, low PDL, excellent splitting uniformity, a wide wavelength range, high reliability and stability, compliant with the Telcordia standard.

In addition, ProVision Optical Systems' single-mode planar (STP) circuit splitters are developed based on a unique silica glass waveguide process with reliably aligned colored fiber distribution in a miniature package, which provides a low-cost wave distribution solution with a small form factor and high reliability. The PLC splitters offer high performance in terms of low insertion loss, low PDL return loss and excellent uniformity over a wide wavelength range from 1260 nm to 1620 nm and operating at temperatures from -40 °C to 85 °C. The PLC splitters have standard configurations of 1x4, 1x8, 1x16 and 1x32, as well as custom structures of 2x8, 2x16, 2x32 and 2x64.

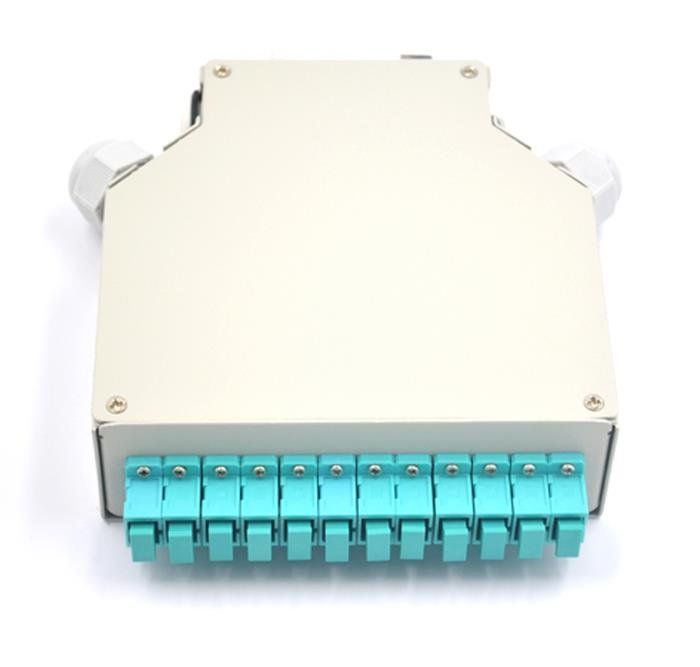

We also supply DIN Rail format splitters for outdoor installations in DIN RAIL standard enclosures integrating active equipment such as converters, switches, WIFI equipment, ONUs, etc.
