Optical infrastructure equipment guarantees the maintenance of service quality •EDFA (Erbium Dopped Fiber Amplifier) amplifiers •VOA (Variable Optical Attenuator) attenuators •DCF (Dispersion Compensation Fiber) signal chromatic dispersion compensators •Optical line protection (OLP) This equipment is presented either in the form of standalone rackable products or in the form of chassis integrating numerous other services (OTNS8600 chassis).

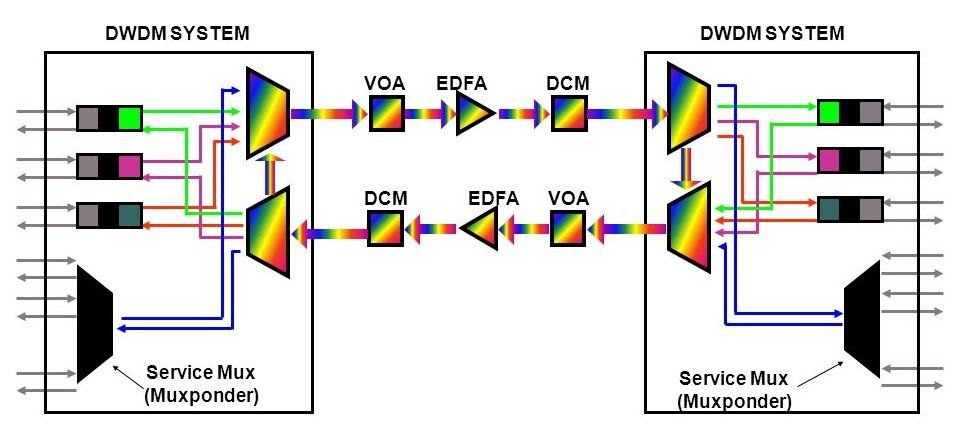

WDM infrastructure equipment
Amplifiers EDFA, VOA, DCF, OLP, OBP...

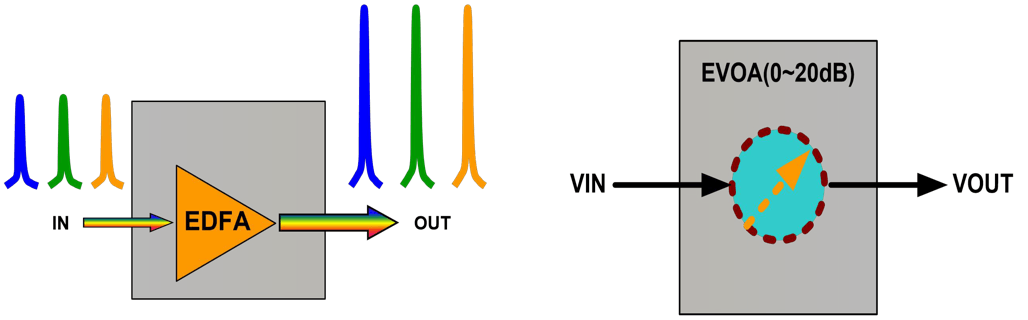

Amplifiers and Attenuators When it is necessary to reach very long distances, the optical signal needs to be amplified by an EDFA (Erbium Dopped Fiber Amplifier). There are line amplifiers (LA), output or booster amplifiers (BA) and pre-amplifiers (PA). Their main characteristic is the gain in dB amplifying the signal. The VOA (Variable Optical Attenuator) function is complementary and often integrated with the EDFA amplifier in order to attenuate the signal and obtain the appropriate final gain.
DCF Correction Modules Chromatic dispersion is one of the characteristics of optical signal transmission. DCF (Dispersion Compensation Fiber) dispersion compensation modules correct this problem and reproduce a clean signal, ensuring long-distance transmission without error rates that could affect the quality of service.

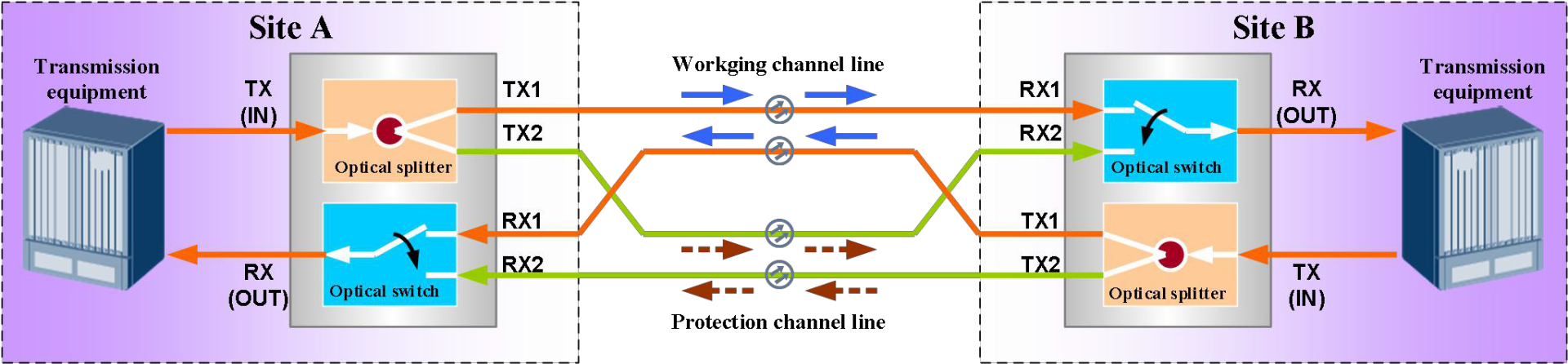

The OLP module is an optical line protection device. Its main function is to perform real-time monitoring of the status of optical signals in the primary and backup paths. In the event that the primary link is blocked or degraded in performance, an OLP system can implement secure and automatic switching between the primary and backup paths, so as to ensure instant data recovery by rerouting the optical signals.
Optical physical layer protection has incomparable advantages for better protection of upper layer services, and it is the best solution to provide the user with uninterrupted service.
Optical Bypass Protection

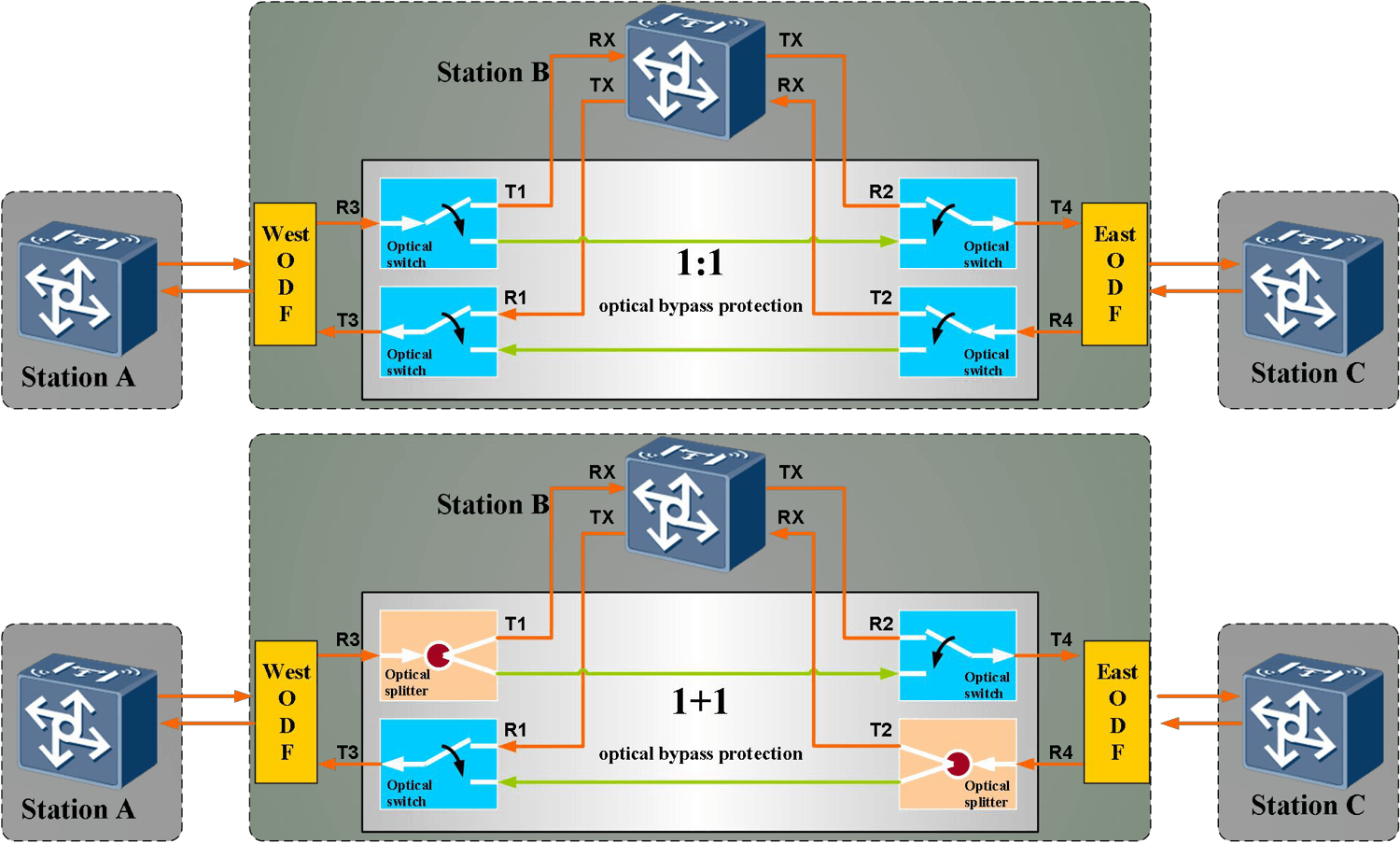

OBP is an optical bypass protection system. OBP realizes intelligent optical path switching at the physical layer and is applicable to the pure optical network environment. OBP can automatically identify the power supply status and optical signal output status of network nodes. When the local optical equipment encounters a malfunction (including power supply failure, hardware or software failure, etc.), it instantly switches to the bypass optical path. In this way, the communication line will bypass the local devices (i.e., the fault point), thus avoiding any blocking obstacle due to the malfunctioning node, so as to ensure connection continuity.
