OTNS8600 Multi-Service Platform
Modules MUX/DEMUX, OADM, EDFA, VOA, DCF, Transponder, Muxponder, OLP, OBP...


The OTNS8600 platform allows to bring together all the infrastructure functionalities (MUX, EDFA amplifier, VOA Attenuator, Dispersion Compensation Module DCF, OLP line protection, OBP Optical Bypass Protection, etc.), transponders and muxponders in the same chassis
The OTNS8600 chassis have integrated management modules allowing unified administration of the transport infrastructure, centralized alarm management and fine monitoring of each DWDM channel.
OTNS8600 service aggregation and OEO conversion platforms can also be built with Transponders and Muxponders on one side and OTNS8600 Optical Transport Network (OTN) platforms on the other side with amplification, DCM, VOA, OLP functions integrated into the MUX allowing up to 96 channels with 100G per DWDM channel for long distances.

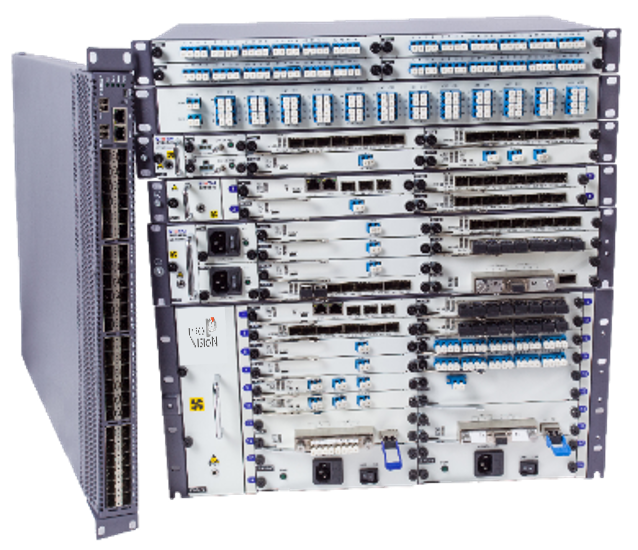

1, 2 or 5U chassis with 4, 8 or 18 slots respectively Redundant AC or DC power supplies Management module and NMS software Multiplexing module 8 or 16 port CWDM MUX cards 8, 16 or 40 port DWDM MUX cards OTU modules for customer service aggregation 1/2/4/8/10/40/100G transponder modules 10x10GSFP -CFP2-100G muxponder modules Infrastructure module EDFA BA/LA/PA amplifiers with integrated VOA DCF20/40/60/80/100kms OLP, OBP modules

Download the documentation
